Eldon Tool and Engineering | 23060 | Engine Timing Tool Set

23060 | Engine Timing Tool Set - 1.6/1.8/2.5Di < previous | next >

For use on popular Ford diesel engines including 1.6, 1.8 & 2.5 DI. Essential for holding the camshaft and crankshaft in timing position when changing the timing belt, camshaft or servicing the injection pump.

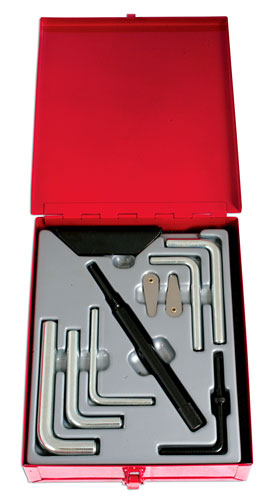

Presented in a practical storage case.

Email to friend

Product Information Sheet - PDF Document

23060-70_Product_Information

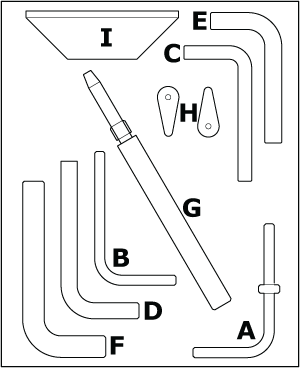

ID	OEM Ref	Description	Part
A	23-019 310-018 23-019/23-029	6mm Setting Pin + Washer	23060-01
B	0178B 6 mm 6mm	6mm Setting Pin	23060-02
C	0178C/D 9767.94 0153M 9767 94 976794	8mm Setting Pin	23060-03
D	21-123 KM 6011 5711-TB 21 123 KM6011 5711 TB 21123 5711TB	9.5mm Setting Pin	23060-04
E	0178A	10mm Setting Pin	23060-05
F	23-020 23 020 23020	12.7mm Setting Pin	23060-07
G	21-104 21 104 21104 303-193 303 193 303193	TDC Setting Screw	23060-S
H	Shims	Shims (2)	23060-F
I	U40021 2065A MP1-300 21-105 5190 999-5190 MP 1-300 999 5190 MP1 300 21 105 MP 1 300 9995190 MP1300 21105	Camshaft Locking Bracket	23062-B
