23061-00 | Master Engine Timing Tool Set - Citroën/Peugeot < previous | next >

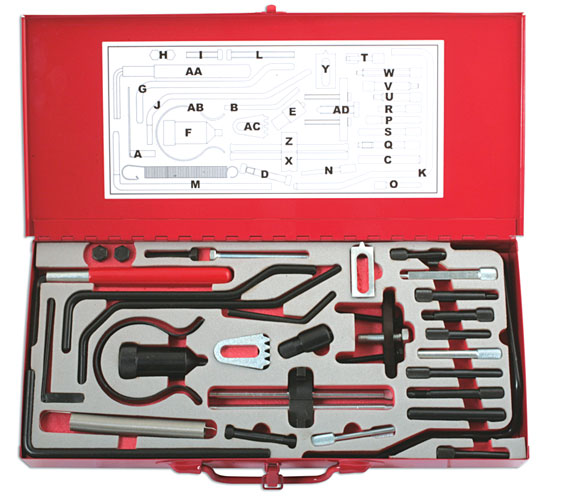

The most comprehensive 36 piece compilation set of engine timing tools to suit PSA - Citroën and Peugeot car and van ranges.

With many camshaft aligning tools, tensioning tools, crankshaft alignment tools and flywheel locking tools suitable for use on most petrol and diesel engines.

Available in modular packaging No. 23061-PK

Email to friend

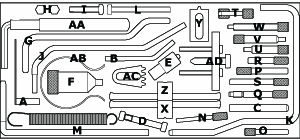

ID	OEM Ref	Description	Part
A	4507-TJ 0132X 4507 TJ 4507TJ	Tensioning Tool	23053
AA	7017-TW 7017 TW 7017TW	Tension Wrench 8mm Hex	23069-51
AB	0188K 0132AK 0153AK MOT 1436 4533-TAD 0189K 1 870 900 100 MOT1436 4533 TAD 1870900100 4533TAD	Timing Belt Retaining Clip	23069-53
AC	0153A 9765.54 6012T 1 860 161 000 Facom D86 1 867 030 000 607 589 01 40 00 9765 54 976554 FacomD86 D86 Mot.582-01	Flywheel Locking Tool	23111-02
AD	0188P 7015-T 0188P2 7015 T 7015T	Flywheel Pulley Puller	23069-57
B	0132Q 0132QZ 4507-TA 132Z 4507 TA 4507TA	Crankshaft Timing Pin 6mm	23055-01
C	7014-TN 0153G 0132R 0153AA 10mm Timing Pin 0153AB 4507-TB M10 x 70mm 0153ZY 9767.27 7014 TN 10mmTimingPin 4507 TB M10x70mm 9767 27 976727 7014TN 4507TB 0123-RZ	Camshaft/Crankshaft Timing Pins (2)	23055-02
D	7014-TM 7014 TM 7014TM	Camshaft Timing Pins (2)	23055-03
E	4507-TL 4507 TL 4507TL	Flywheel Timing Pin	23055-05
F	0189C	Flywheel Locking Pin	23055-06
G	7014-TJ 1 860 863 000 8 mm 0188D 7004-TG 9767.34 7014 TJ 1860863000 8mm 7004 TG 9767 34 976734 7014TJ 7004TG	Cranked Setting Pin 8mm	23061-02
H	M8 x 35mm M8x35mm	M8 x 35mm Locking Screw	23061-03
I	M8 x 40mm M8x40mm	M8 x 40mm Locking Screw	23061-04
J	7017-TR 7017 TR 7017TR	Flywheel Timing Pin 7mm	23061-06
K	7099-TM 0188Y OUT0000127 0153N 0288D 1 860 863 000 7099 TM 1860863000 7099TM EN-52137	Flywheel Timing Pin 8mm	23061-07
L	M8 x 70mm M8x70mm	M8 x 70mm Setscrew	23061-09
M	0188 X	Flywheel Setting Pin with Spring	23061-11
N	21-260 0132AB 4527-TS2 0194A 1.860.617.000 4527 TS2 0178D 303-732 077440010400 11 9 790 49 JE02 018 5711 TD 999 7169 99360608 0194-A KM-6349	Crankshaft Pulley Alignment Pin	23069-04
O	0188H 1 860 965 000 1860965000 303-1667/2 0198-B 0198-B2	Setting Pin	23069-07
P	0189B 0187B MOT 1430 21-263 0194B 999 7122 303-1277 999-7122 0132AJ1 303-735 49 JE02 021 09919 58120 607 589 01 15 00 MOT1430 21 263 9997122 303 735 49JE02021 0991958120 607589011500 21263 3031277 303735 8mm Pin 8mm drill bit 0194-B EN-52137 Mot.1430 0132AJ1 0187B 0189B 0194B 0194-B 09919 58120 0991958120 21 263 21263 21-263 303 735 3031277 303-1277 303735 303-735 49 JE02 021 49JE02021 607 589 01 15 00 607589011500 8mm drill bit 8mm Pin 999 7122 9997122 999-7122 EN-52137 MOT 1430 Mot.1430 MOT1430 EN-52137	Camshaft/Crankshaft Timing Pin	23069-25
Q	4527-TS1 4527 TS1 4527TS1	Injection Pump Timing Pin	23069-31
R	0132AJ1 4533-TAC1 4533 TAC1 4533TAC1	Camshaft Timing Pin (CA1)	23069-32
S	0188M 0132AJ2 4533-TAC2 4533-TAC 2 000 023 200 4533 TAC2 4533 TAC 2000023200 4533TAC2 4533TAC 0188-M	Camshaft Timing Pin (CA2)	23069-33
T	5711-TA 9041-TZ 5711-TC 153AB 5711 TA 9041 TZ 5711 TC 5711TA 9041TZ 5711TC	Camshaft Timing Pins (2)	23069-34
U	0189A 1 871 008 100 1871008100	Camshaft Timing Pin	23069-36
V	0189AZ	Camshaft Timing Pin	23069-37
W	0189L	Inlet Camshaft Timing Pin (VTC)	23069-38
X	0188J/J1 5711-TE 0188J 0178E 5711 TE 5711TE	Tensioning Lever	23069-44
Y	9044-T 0188F 0134Q 0134AF 1 870 765 001 1 870 827 000 9044 T 1870765001 1870827000 9044T EN-52333	Flywheel Locking Tool	23069-46
Z	0188J2	Tensioning Lever Hdi	23069-49
